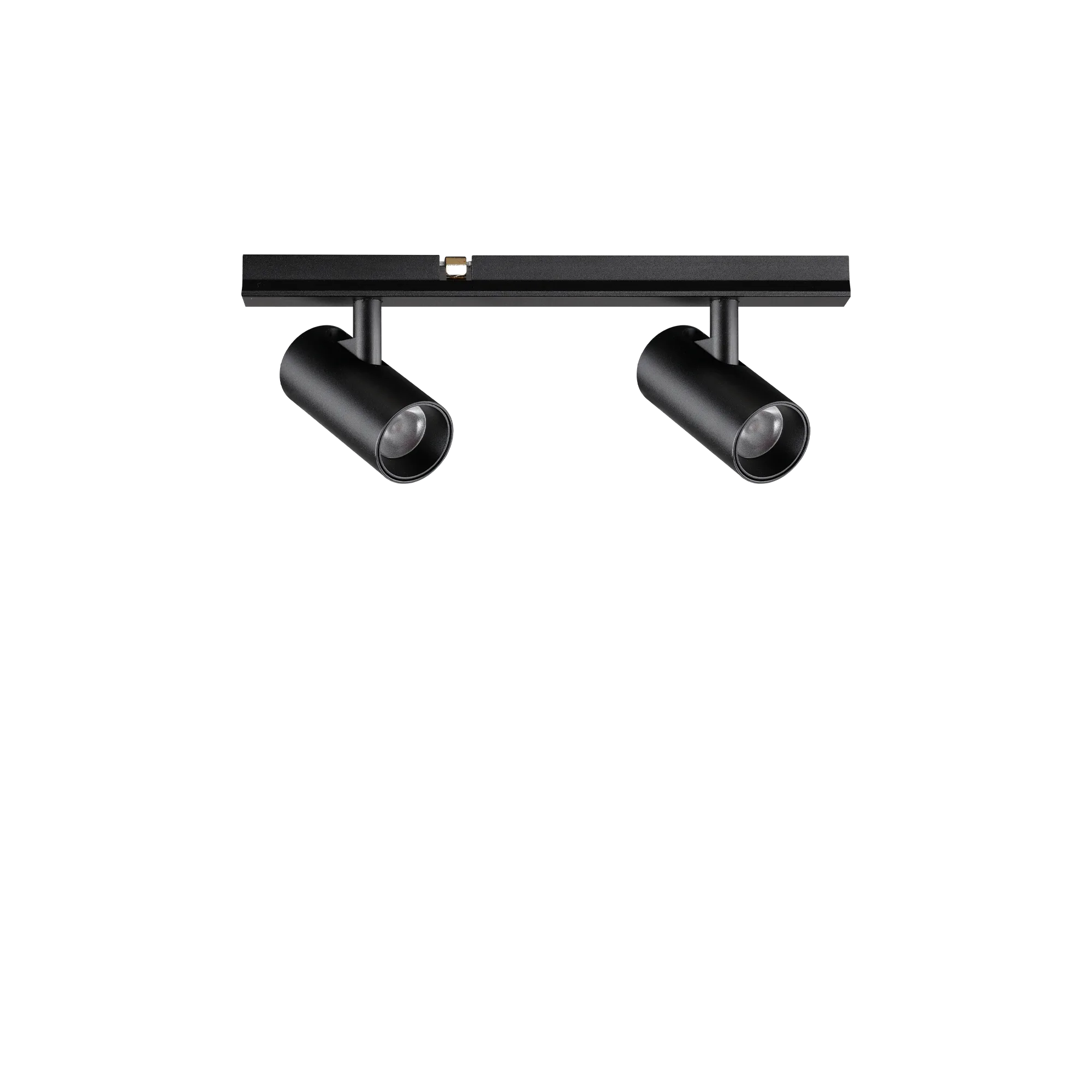

Stick track double 06w
Stick track double 06w
Stick collection
Technical | Systems
cod. 329512
Linear system composed of extruded aluminum profile and lighting elements with magnetic fixing. The system is available in matt black for ceiling (SURFACE) or recessed installation that disappears into the plasterboard (RECESSED). Smll profile section of 19 mm wide and only 13.5 mm high. Available in two lengths: 1000 mm and 2000 mm. Possibility of composition with different source modules which can be combined following the desired disposition and can be modified when needed: TRACK SINGLE and DOUBLE modules for a spot illumination, ACCENT module for a localized illumination and WIDE modules for a diffused and uniform illumination. Integrated LED technology with color temperature of 3000k; high color rendering CRI 90; IP20 protection, insulation class III, 48 Vdc power source,; LED useful life 30.000 h L70B5. The system is also available with 1-10 V or DALI dimmable version. Ideal for lighting details or small spaces where great flexibility and high light quality is required, such as MUSEUMS, RESIDENTIAL and RETAIL spaces.
L 150 x H 61,6 x P 22 mm
6W
50000 h
3000 K
550 lumen
IP20
Downloads
Stick collection
ACCENT
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
TRACK DOUBLE
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
TRACK SINGLE
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
WIDE
CRI > 90
Power
Angle
Flux
CCT LED
Color
cod.
Download
OPTIONAL
329598
Stick profile recessed 1000 mm
329604
Stick profile recessed 2000 mm
329574
Stick profile surface 1000 mm
329581
Stick profile surface 2000 mm
